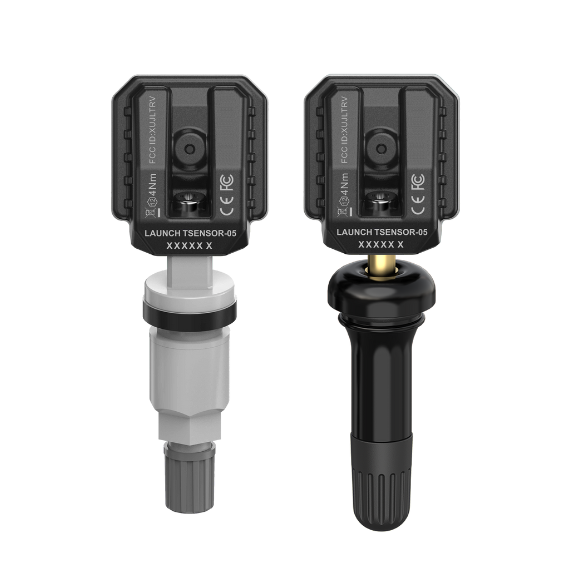

LTR-V
Universal & Programmable
In four colors, the LTR-V is a programmable universal TPMS sensor that combines 315MHz and 433MHz frequencies. It's reprogrammable via a LAUNCH TPMS tool for unlimited OE sensor replacements. Real-time sensor data, such as pressure and temperature, can be read when the sensor is detected by a LAUNCH TPMS service tool.
Features
1. A LAUNCH X-431 scan tool pairs with TSGUN or i-TPMS to carry out TPMS services.
2. A standalone TPMS service tool can perform TPMS services directly.
Specification
| LTR-03 | LTR-V | |
| Operating Frequency | 315MHz / 433MHz | 315MHz / 433MHz |
Battery Voltage | 3.0V | 3.0V |
RF Transmitter Power | 5~8dBm | 5~8dBm |
Storage Temperature | -40℃~125℃ | -40℃~125℃ |
Working Temperature | -40℃~125℃ | -40℃~125℃ |
Pressure Monitor Range | 0~800kPa | 0~800kPa |
Pressure Reading Accuracy | ±10kPa | ±10kPa |
Temperature Reading Accuracy | ±5℃ | ±5℃ |
Dimension | 42.5*19.5*73 (mm) | 27.2*20*76.4 (mm) |
Weight | 28g | 24g |
