X-431 PAD V ELITE
X-431 PAD V ELITE
Like 9

X-431 PAD V ELITE

LAUNCH High-end Flagship Diagnostic Tool
X-431 PAD V is a high-end comprehensive diagnostic scanner with charging base newly developed on the basis of Android 7.1. It supports dual 2.4GHz & 5GHz Wi-Fi communications, with features such as wide vehicle model coverage, powerful diagnostic functions, and accurate test data. Its IP65 case has exceptional damages resistance for water and dust, which will make workshop work easier and more comfortable. All these unique features will offer you a luxury experience of vehicle diagnosis.
Related Products
BST360 Bluetooth Battery Tester
BST360 Bluetooth Battery Tester
Bluetooth Battery Tester For Technicians And On The Go Consumers
X-431 ADAS PRO PLUS
X-431 ADAS PRO PLUS
Ultra-high Precision ADAS Calibration Tool
VSP-600 Video Scope
VSP-600 Video Scope
Cost-effective Videoscope
O2-2 Scopebox
O2-2 Scopebox
Advanced Scopebox For Solving Complex Electrical Faults
LTR-03 RF Sensor
LTR-03 RF Sensor
LTR-03 RF Sensor
Features

1. Full vehicle system coverage for over 110 brands in the world, which is continually updated

2. Full-function scan tool for both cars and trucks

3. Support J2534, DolP, CAN FD and other protocols with Smartlink VCI

4. Automatically identify VIN upon connection to the vehicle for intelligent diagnosis

5. Remote diagnosis allowing you to work on a vehicle from your tool without being on-site

6. Read all DTC types for full system, view, graph and record data PIDs, support bi-directional controls, actuation test and all other diagnostic functions

7. Guided function for Volkswagen and Audi

8. Advanced coding and programming function

9. 41 special functions available

10. ADAS calibration function is optional

11. Compatible with 5 extended module: Oscilloscope, sensor, battery test, endoscope, WiFi printer

12. One-Click Upgrade and silent install for software

13. Diagnostic records and reports can be stored in the cloud without any concern of data missing

14. Integrated database with comprehensive vehicle services and repair information

15. The latest 2.4 & 5GHz Dual Wi-Fi with high transfer speed, strong anti-interference and long-distant diagnosis ability

16. IP65 case with exceptional damage resistance to the water and dust for workshop use

17. Docking & charging station included with QC3.0 Quick Charge technology

18. Support USB Type C & Type A

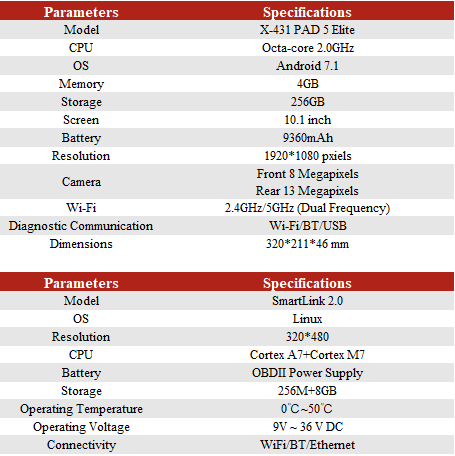

Specification

Download
Download
Number
File type
File name
File size
Time
Operation
1
X-431 PAD V Elite User Manual.pdf
7.56MB
2022-06-27 14:54:22
2
J2534 Tool and operation manual.rar
11.29MB
2022-12-09 16:17:39
3
SmartLink C 2.0 Quick Start Guide.pdf
20.25MB
2024-11-21 15:21:14
