X-431 PAD VII
Like 1

X-431 PAD VII

LAUNCH High-end Flagship Diagnostic Tool
X-431 PAD VII is an unexpected high-end diagnostic tool from LAUNCH. comes with the ADAS calibration function, 39 service functions, TPMS service and Add-on modules. New Samrtlink C VCI powers technician a new diagnostic level without the limitation of diagnostic functions, tools and vehicle type.
Contact Us
Related Products
Features

Features


1. Full system vehicle coverage for U.S., Asian and European markets over 110 brands, which is constantly updated


2. Upgrade and expand the X-431 PAD VII with more software and service via the new module 'MALL' as demanded


3. Real-time voltage display helps technician to monitor the voltage condition of vehicle during the diagnosis


4. Topology mapping gives a visual checking on DTCs and all systems communication status


5. Support automotive communication protocols CAN/CANFD/DoIP and automotive communication standards J2534/D-PDU/RP1210


6. Auto-detects the communications protocol of the vehicle and assist to check automotive OBDII port pin damaged or not


7. Intelligent diagnostic enable identify VIN automatically and access system quickly


8. Guided function for VW and AUDI


9. Optional ADAS calibration function


10. Advanced coding and programming function


11. An extended solution to support TPMS service


12. 2.4GHz & 5GHz dual band communication ensures quick and stable connection


13. Enable technician to diagnose light, medium & heavy duty vehicles with Smarlink C


14. The basic functions include read & clear DTC, remote diagnosis, Bi-directional control, live data graph, wireless software update etc.


15. Build-in repair information and training video modules help to track and fix issue fast

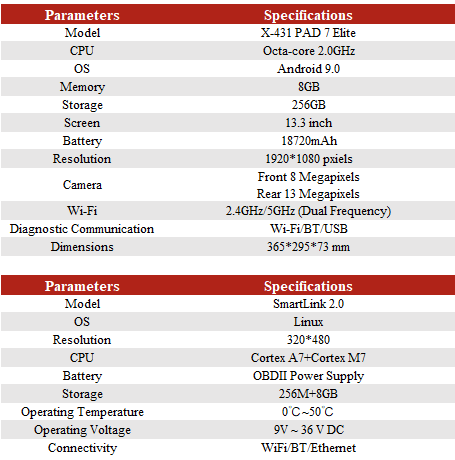

Specification

X-431 PAD VII

Smartlink C

Operation System

Andorid 9.0

Linux

CPU

2.0GHz Octa-core

Cortex-A7+Cortex-M7

Display

13.3' touch screen 1920*1080

3.5' touch screen  320*480

Memory

8GB

256M

Storage

256GB

8GB

Camera

Rear 13MP, Front 8MP

None

WiFi

Dual Band 2.4 & 5GHz

Dual Band 2.4 & 5GHz

Diagnostic Communication

WiFi

WiFi & BT & USB

Working Temperature

0℃~50℃

0℃~50℃

Dimension

353*236*71 mm

204*110*45 mm



Download
Download
Number
File type
File name
File size
Time
Operation
1
X-431 PAD VII User Manual.pdf
4.79MB
2022-06-27 14:54:47
Download
2
J2534 Tool for Smartlink and operation manual.rar
8.65MB
2022-09-06 14:01:19
Download
