X-431 IMMO PAD
Like 25

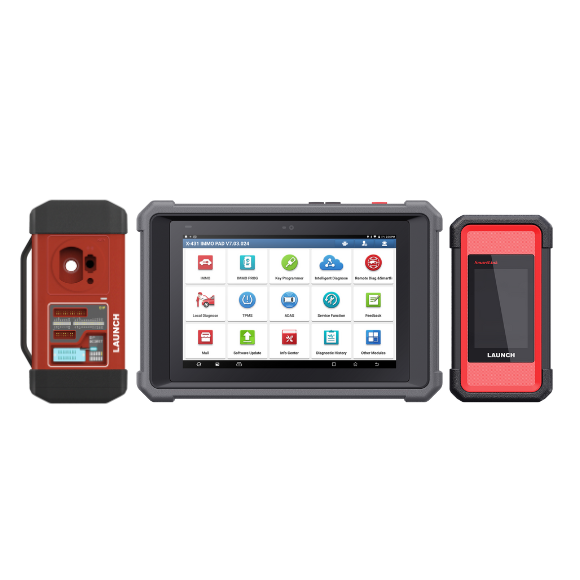

X-431 IMMO PAD

All-in-one Key Programming & Advanced Diagnostic
The All-in-one Key Programming & Advanced Vehicle Diagnostic Bundle. A reliable partner for your repair business.
Contact Us
Related Products
Features

Intelligent Diagnostics

1. All systems OE-Level diagnostics for over 110 vehicle models.

2. Exceptional full functionality includes comprehensive OBD II diagnostics, bi-directional control, ECU coding & programming, etc.

3. Support CAN/CANFD/DoIP communication protocols and J2534 communication standards.

4. Exclusive Smartlink remote diagnosis.

5. 25 advanced service functions.

6. Pre-scan and post-scan diagnostic report.

7. Expand diagnostic coverage via “Mall”.

8. Optional ADAS calibration function with the X-431 ADAS calibration tools.

9. Optional TPMS function with X-431 TSGUN.


Advantages

1. Supports VW/AUDI MQB platform engine ECU replacement or cloning (Read engine ECU data directly from the key).

2. Supports VW/AUDI MQB platform gearbox ECU replacement or cloning.

3. Supports ECU replacement for fifth-generation Audi (0AW/0B5) gearboxs.

4. Supports reading, writing & cloning of the ECU for fourth-generation VW UDS engines.

5. Supports BMW E chassis 8HP gearbox ECU program wiping.

6. Support Mercedes(Engine, Gearbox, EIS) and BMW(Gearbox) ECU anti-theft data erase.

7. Supports 170+ Bosch, 10+ Siemens engine ECU and 18+ gearbox ECU BENCH mode clone.

- Bosch engine ECU: ME17,MED17,EDC17,MEVD17, etc.

- Siemens engine ECU: BMW(MSV90, MSD87, MSD85,MSD81, MSD80), Mercedes(SIM271DE2.0,SIM271KE2.0), VW/Audi(SIMOS8.6x,SIMOS8.5x,SIMOS8.4x), etc.

- Gearbox ECU: DQ200-MQB, DQ250XX, DL501 Gen1,VL381,VGS2- FCVT,VGS-FDCT,DQ400E,DL501 Gen2,DL382-7F,VGS2-FDCT,9G_Tronic,DQ380,DQ381, DQ500,AL551,AL450,AL552,AL951,8HPXX, etc.


Functions

1. Supports key matching/copying, anti-theft IC reading & writing, and ECU reading & writing, etc.

2. Anti-theft modules replacement

Support anti-theft modules replacement of BMW, Mercedes-Benz, VW/Audi, Honda, Nissan, Hyundai, Kia, BYD, Changan, Wuling Baojun, GAC, SAIC Maxus, Great Wall Motor, Chery Car, Dongfeng Fengxing, JAC Passenger Car, etc

3. Anti-theft password reading

Supports the anti-theft password reading of Peugeot Citroen, GM, Nissan, Hyundai, Kia, Chery Cars, Dongfeng Fengxing, JAC Passenger Cars, etc.

4. Key Matching

Support key matching of Ford, GM, Mercedes-Benz, BMW, VW/Audi, Porsche, Peugeot Citroen, Land Rover Jaguar, Honda, Toyota, Nissan, Hyundai, Kia, BYD, Changan Automobile, Wuling Baojun, Great Wall Motors, Chery Cars, JAC Passenger Cars, etc.


Specification

X-431 IMMO PAD Tablet

Processor

2.0GHz, Octa-Core

Operation System

Android 7.1

Memory

4GB

Storage

64GB

Battery

9360mAh

Display

10.1'', 1920*1200

Camera

Front 8MP, Rear 13MP

Protection

IP65

WIFI

2.4GHz/5GHz

Interface

TYPE A *1 & TYPE C*1

Working Temperature

0~50℃

Dimension

320 x 211 x 46mm


Smartlink C VCI

Display

3.97“ single-touch screen, 320*480

Memory

256MB

Storage

8GB

Remote Communication

WIFI / Ethernet

Working Voltage

DC 9V – 36V

USB

Type B USB2.0

Power Consumption

<6W

Work Temperature

0~50℃

Dimension

204 * 110 * 45mm


X-PROG 3

Interface

DB26, DB15

Input Voltage

DC12V

Input Current

500mA

Working Temperature

0~50℃

Storage Temperature

-20~70℃

Vehicle Key Slot

To place car key for RF defection

DB26

Used to connect to each anti-theft cables

Infrared slot for Benz key

Used to place  the Mercedes-Benz infrared key to perform the key matching function

Key IC hole

Used to place the key chip to perform the key matching function

Status Indicator

Power supply indicator lamp

DIY Slot

Used to connect the anti-theft ECU pin through the cable to read and write data

Locker

To tighten loose EEPROM board

DC 12V

Used to connect to the DC12 power supply

DB15

To connect with vehicle’s DLC

EEPROM Slot

To insert EEPROM board
