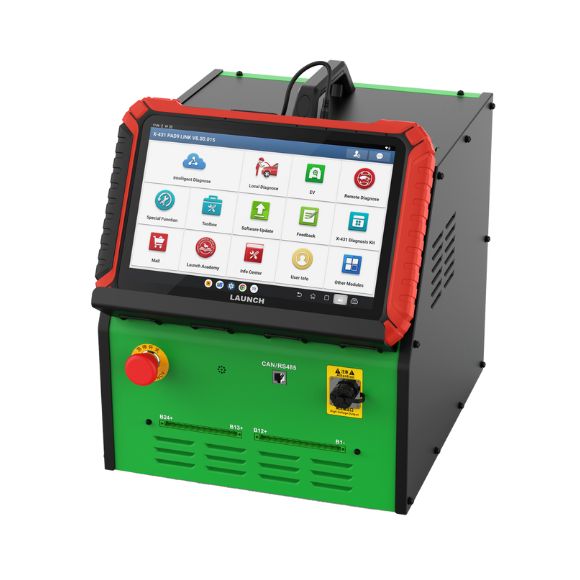

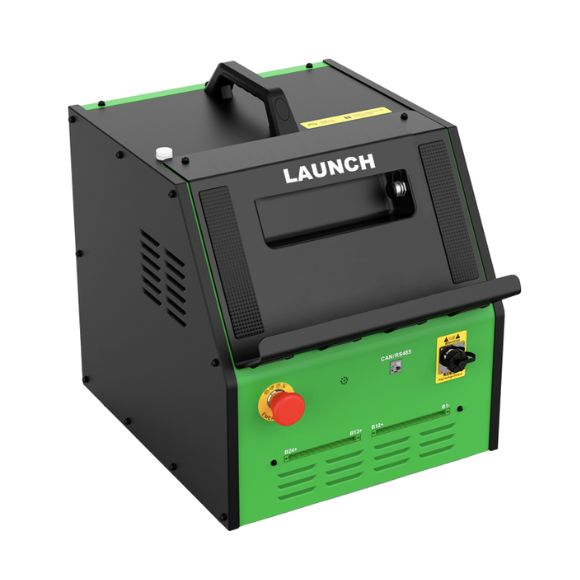

EVM324
Paired with an X-431 diagnostic tool, technicians can perform EV diagnostics, battery cell balancing, and battery pack charging & discharging tasks. EVM324 makes EV repair more efficient and effective.
1. Up to 24 battery cells equalization.
2. Compatible with multiple battery types.
3. Supports 40A charging and 20A discharging.
4. Comprehensive battery safety protection.
5. Covers over 95% of electric vehicles on the market for thorough diagnostic capabilities.
6. Testing maintenance of core EV components.
7. In-depth battery pack inspection.
8. Multitasking with floating window mode.
9. Works with X-431 diagnostic tools.
*EV diagnostic functions require the purchase of the EV Add-on Kit with software available.
INPUT POWER | AC 100~240V / 50~60Hz |
BATTERY MODULE VOLTAGE RANGE | DC 0-112V |
BATTERY CELL VOLTAGE RANGE | 1.6~5V |
CHARGING CURRENT RANGE | 0.5~40A, Max. Power 3.2kw |
DISCHARGING CURRENT RANGE | 0.1-20A, Max. Power 2.4kw |
SINGLE CELL VOLTAGE ACCURACY | 0.1%FS+5mV (Max. Range 5V) |
SINGLE CELL CURRENT ACCURACY | 0.5%FS 0.05A (Max. Range 20A) |
COMMUNICATION | Wi-Fi, Bluetooth |
EQUALIZATION INTERFACE | 12PINx1+13PINx1 |
CHARGING CONTROL | Constant Voltage Charging, Constant Current Charging |
DISCHARGING CONTROL | Constant Voltage Discharging, Constant Current Discharging |
CHARGE-DISCHARGE PROTECTION | Overcharge, Over-discharge, Overtemperature Protection for Battery Modules |
REVERSE CONNECTION PROTECTION | Support |
OVERTEMPERATURE PROTECTION | Heat Dissipation Box Overtemperature Protection at 85°C |
MAIN DEVICE PROTECTION | Overtemperature, Overcurrent, and Current Out-of-Control Shutdown Protection |
ABNORMAL PROTECTION | Power Line and Main Cable Power Loss |
