LAUNCH AIOBD
1.Multi-functional Diagnostics: Supports OBDII 10 modes, full-system scan, special functions (e.g., ECU coding, immobilizer functions).
2.Smart Vehicle Recognition: AutoSearch function detects VIN and initiates a complete vehicle scan.
3.AI-Powered Assistance: LAUNCH AI provides DTC explanations, repair guides, tool recommendations, and cost estimates.
4.Cross-Platform Compatibility: Available for both iOS and Android (supports 19 software packages on iOS and 30+ on Android).
5.Visual Data Display: Real-time data visualization with line graphs and shareable diagnostic reports.
6.Multilingual Support: Supports English, French, Spanish, German, Italian, Russian, Portuguese, Japanese, Korean, and Traditional Chinese.
7.Continuous Software Updates: Features are constantly updated with optional paid subscriptions via the app mall.

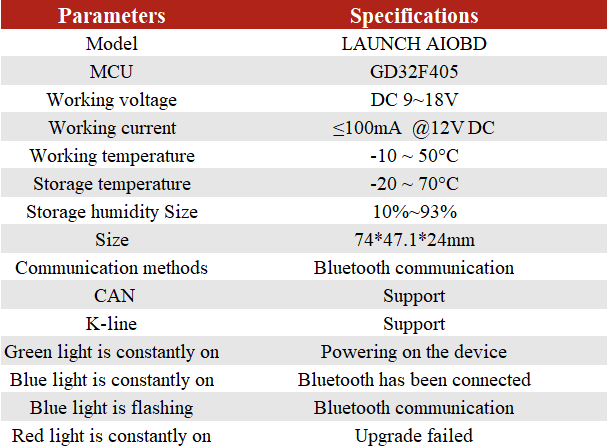

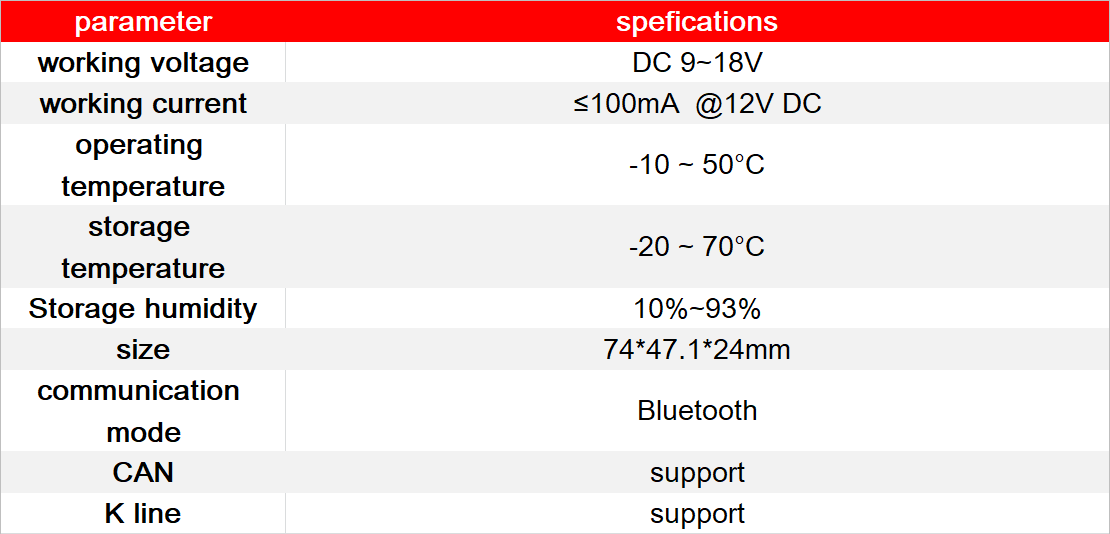

| Item | Specification |
|---|---|
| MCU | GD32F405 |
| Operating Voltage | DC 9~18V |
| Operating Current | ≤100mA @12V DC |
| Operating Temp. | -10 ~ 50°C |
| Storage Temp. | -20 ~ 70°C |
| Storage Humidity | 10%~93% |
| Dimensions | 74 × 47.1 × 24 mm |
| Communication | Bluetooth |
| Protocol Support | CAN, K-Line |
| Indicator Lights | Green: Power On; Blue: Connected/Active; Red: Upgrade Failed |
| Certifications | Bluetooth, FCC, CE, IC, ROHS |
