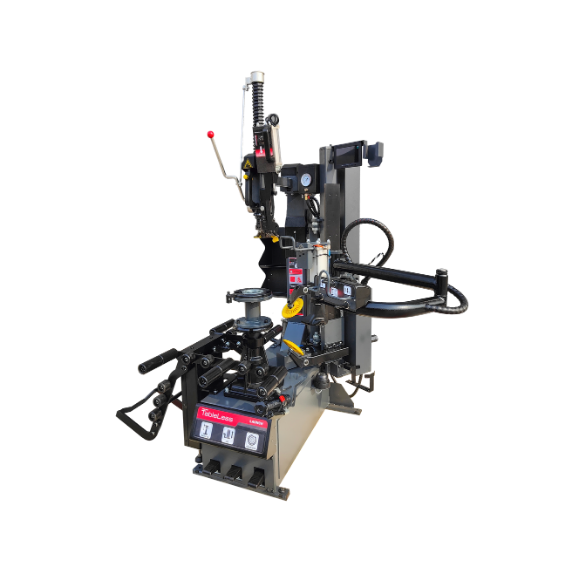

TWC-921
Like 0

TWC-921

Column Swivel Side swing Leverless Tire Changer
Designed for high-volume tire service, the TWC-921 accommodates 13"–26" rims and tires up to 1100 mm in diameter, making it ideal for passenger cars, SUVs, run-flat tires, and light trucks. Featuring a lift-up side swing structure and leverless technology, it delivers efficient operation while protecting rims. Equipped with a 220V intelligent servo motor, 185 mm dual air cylinder, and 2500 kg bead breaker force, it easily handles large and stiff tires. Standard features include an automatic tire lifting device, LCD system, and support for reverse and center-hole-free clamping for stable, labor-saving operation.
Related Products
Features

  Pulsed Full Flow Pressure Limiting System

  Latest BQC No-skid Tire Dismantling Head

  Dual Shovel System



• 185mm Dual Air Cylinder

• 220V Intelligent Servo Motor

• Manual Press Bar

• Double-Lock Square Bar

• Pull-Type Pedal Valve

• Tire Lifting Device

• Standard LCD System

• Supports reverse/no-center-hole positioning & light trucks.


Specification

VOLTAGE:  220V

POWER:  1.5kW

ROTATION:  1~13rpm

PRESSURE:  0.8~1.0Mpa

NET WEIGHT:  785kg

TYRE WIDTH:  15’’

MAX. TYRE DIA:   1100mm

MAX. WHEEL WEIGHT:  65kg

CLAMPING SIZE:  13’’~26’’

BEAD BREAKER FORCE:  2500kg
