Advanced Diagnostic Scanner
The X-431 PAD V LINK is a high-end professional diagnostic tool with an optional charging base newly developed based on the Android 7.1 open system. It comes with ADAS calibration functions, 41 service functions, TPMS services, and other extended modules functions. The IP65 case is waterproof and dustproof to best protect the scan tool for use longer. All these unique features will offer you a luxury experience of vehicle diagnosis.
Related Products
X-431 PAD VII LINK
X-431 PAD VII LINK
LAUNCH High-end Flagship Diagnostic Tool
X-431 PRO3 LINK
X-431 PRO3 LINK
DUAL DIAGNOSTIC MODE SCANNER
X-431 PRO3 SE
X-431 PRO3 SE
Consumer Choice For Years
X-431 PRO SE
X-431 PRO SE
Brand New Design With DoIP/CAN FD Functions
Features
  1. Topology mapping lets you visual check the DTCs and all systems communication status.

  2. Enables you to diagnose light, medium & heavy duty (optional) vehicles with the Smarlink C.

  3. Supports X-431 Fix database to fix the problems fast.

  4. Full system vehicle coverage for U.S., Asian and European markets over 110 manufacturers, which is continually updated.

  5. Real-time voltage display is supported, which helps you monitor the voltage condition of the vehicle during the diagnosis.

  6. Supports automotive communication protocols CAN/CANFD/DoIP and automotive communication standards J2534/D-PDU/RP1210.

  7. Auto-detects the communication protocols of the vehicle to check if there is any OBDII port pins damaged or not.

  8. Intelligent diagnostic enables automatic VIN identity to automatically access systems quickly.

  9. Intelligent and local diagnostic, which include full diagnostic functions, such as read/clear DTC, live data streaming, bi-directional control, coding, programming, etc.

  10. Guided functions for Volkswagen and Audi.

  11. Optional ADAS calibration function increases more revenue.

  12. Advanced coding and programming function.

  13. An extended solution to support TPMS service.

  14. The software is available to purchase separately on the MALL at any time.

  15. Built-in repair information and training videos help to track and fix issues fast.


Specification


  X-431 PAD V LINK

  Operation System

  Android 7.1 (open system)

  Display

  10.1", 1920*1200

  CPU

  2.0GHz, Octa-core

  Memory

  4GB

  Storage

  128GB

  Battery

  9360 mAh

  Camera

  Rear 13MP, Front 8MP

  VCI Connection

  2.4GHz/5GHz dual WiFi

  Dimension

  320*211*46 mm

  Interface

  TYPE A*1 & TYPE C*1



  SMARTLINK C V2.0

  Display

  3.95''  320*480

  Memory

  256M

  Storage

  8GB

  Remote Communication

  Local Diagnosis: WiFi/BT/USB

  SmartLink Remote Diagnosis: WiFi/Ethernet

  Working Voltage

  9V DC ~ 36V DC

  Dimension

  200*110*47 mm


Video
Download
Download
Number
File type
File name
File size
Time
Operation
1
J2534 Tool and operation manual.rar
11.29MB
2022-12-09 16:17:39
2
J2534 Tool 20230928.zip
11.63MB
2023-09-28 17:27:31
3
X-431 PAD V LINK flyer.jpg
1.66MB
2024-02-22 16:03:44
Suggestions
You are welcome to provide more valuable suggestions
Login to leave message , Log in now
Message
Login to leave message , Log in now

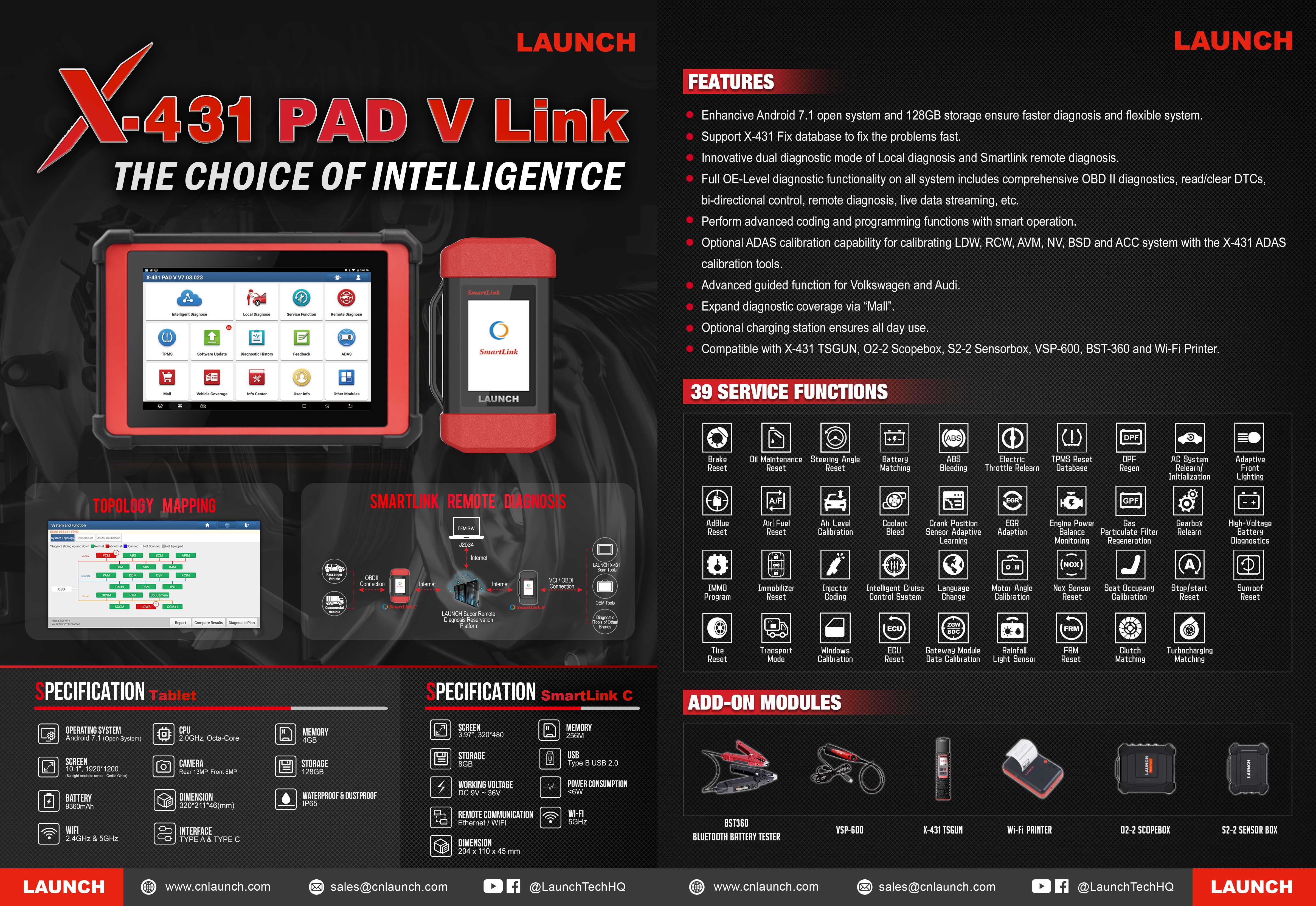

Product Poster
